研磨墊- 技術規格書
Grinding Pad-Technical Specification

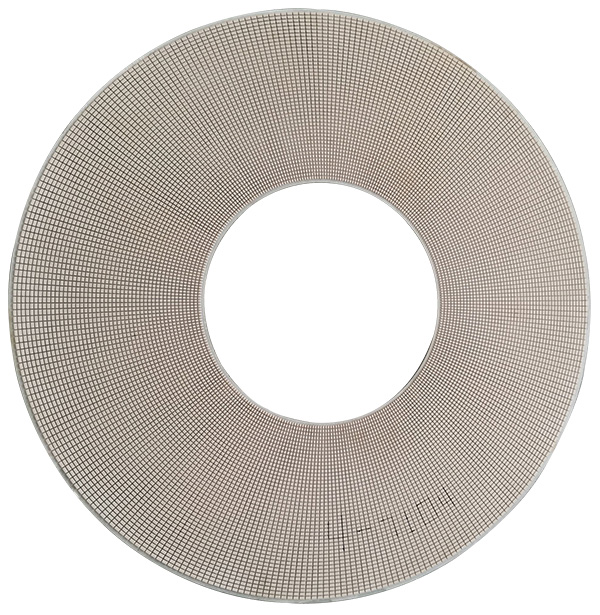

一.產品名稱：固結磨料鉆石研磨墊
Product name: Solid abrasive diamond abrasive pad
二.型號：4Mic /9Mic
Type: 4 Mic/9 Mic
三.外觀及異味：淡灰色/淡黃色，無異味
Appearance and odor: pale gray/light yellow, no odor
四.產品屬性：樹脂固結磨料鉆石研磨
Product Properties: Resin cemented abrasive Diamond Grinding
五.產品用途：承載拋光液作用，自身兼?zhèn)渚氀心ツ芰Γ瑢ΣＡнM行薄化處理。
Product use: bearing the role of polishing liquid, its own combination of fine grinding ability, glass thinning
六.尺寸：Φ635,Φ910, Φ960, Φ1050，Φ1160, Φ1250，Φ1456mm等,可根據客戶要求定制尺寸。
Dimensions: Φ635,Φ910, Φ960, Φ1050，Φ1160, Φ1250，Φ1456mm, etc., can be customized according to customer requirements.
七.儲存方法：不得彎折或卷曲，不得接近熱源，不得與化學品接觸，環
境溫度-10℃至40℃，濕度≤60%
Storage methods: no bending or curling, no access to heat sources, no contact with chemicals, rings
Situational temperature -10 °C to 40 °C, humidity ≤ 60 %
八.包裝：紙箱包裝.
Packing: Packing in wooden cases
九.技術參數Table of technical parameters
物理指標
Physical indicators
|
單位
|
數值
|
備注
|
表觀密度
Apparent density
|
g／cm3
|
1.48±0.05
|
|
拉伸強度
Tensile strength
|
Kpa
|
≥3
|
|
斷裂伸長率
Fracture elongation
|
%
|
≥40
|
|
撕裂強度
Tear strength
|
N／cm
|
≥13
|
|
硬度
Hardness
|
邵氏 A
|
90±3
|
|
粒度
Particle size
|
μm
|
3-5 (4Mic)
8-10 (9Mic)
|
|
—————————————————————————————————
